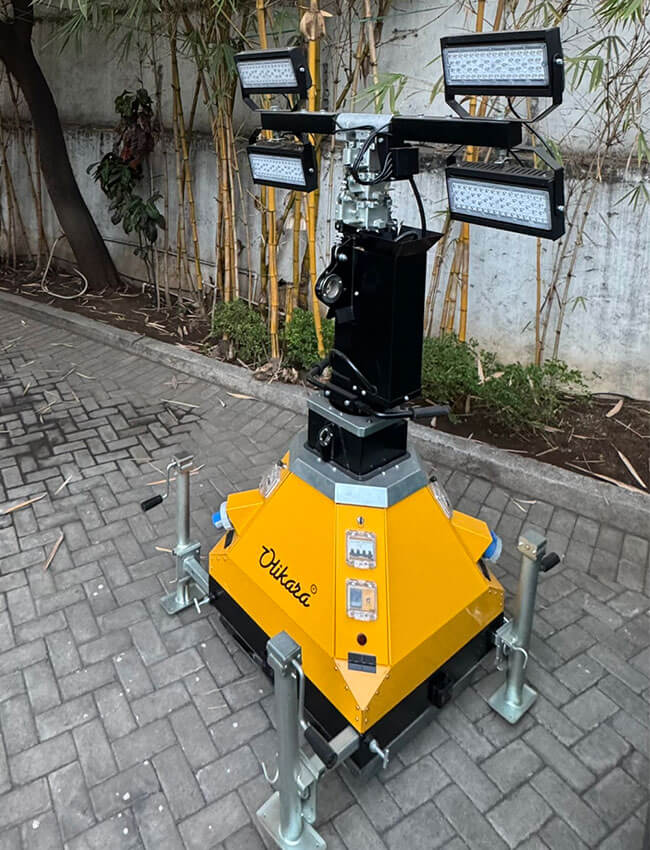

Qube Grid Base / Trailer

The QUBEgrid base / trailer is equipped with a dependable source of grid supply at single-phase 230 V or 120 V at 50 Hz or 60 Hz. These are suitable for diverse applications such as event lighting, mine haul road lighting, and steel plant interior lighting. Designed for flexibility and mobility, we offer both skid and mobile versions, making setup and relocation a breeze. Furthermore, they are versatile enough to accommodate additional equipment like surveillance and networking devices, making them the perfect choice for a wide range of industrial and event-based power requirements.

Mast height

27 ft (8 m)

Light

4 x 400 W LED

Runtime

No noise.
No emissions.

Light coverage

6000 sq. m

Specification

Engine	Power Supply	Tank Size	Sockets	Weight	Dimensions (LXBXH)
NA	Grid supply 120 VAC @ 60 Hz 230 VAC @ 50 Hz	NA	Output : 32 A, 3-pin female Input : 32 A, 3-pin male	380 kg or 430 kg (base/trailer)	Travel: 0.8 x 0.8 x 2.3 m Operation: 1.5 x 1.5 x 9 m

FEATURES

Ideal for events in locations with less power availability
Both skid and mobile versions are easy to move and set up quickly
Daisy linking up to 4 towers from a single power source
Mounting flexibility for devices for surveillance, networking, etc

HIGHLIGHTS

Our unique modular LED fixture with specialized lenses ensures even light distribution
Custom-built for durability in demanding work environments, handling vibration and temperature variations

Hot-dip galvanized mast ensures superior protection against rusting and abrasions
Unique worm winch reduces the load on the winch handle to raise and lower the mast
Light arm can be tilted manually to 3 different angles
All pulleys are plated and fitted with sealed bearings to give a long life
All wire ropes are stainless steel
Mast can be rotated 355 degrees from the base

Trailer version has a single axle with two 10” pneumatic tires and leaf spring suspension
Trailer version can be easily towed with a NATO eye or 2" ball hitch coupler
Both base/trailer versions feature a central mast lifting hook for crane use
Front and rear forklift pockets for easy forklift truck handling
Four tie-down slots at each corner for secure transport
Folding drawbar design for a compact transport footprint

There are 3 stabilizer jacks on outriggers and 4 jacks for the base version
This offers stability to the machine at wind speeds up to 80 kph
The sidewind jacks make it easy to level the machine

IP65-rated 3-pin female socket, suitable for daisy-chaining additional grid towers
Equipment operation via the provided power input socket
Circuit breakers safeguard power flow in and out of the sockets
